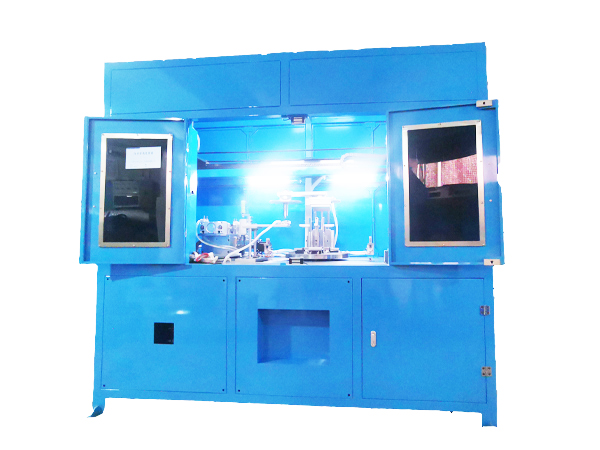

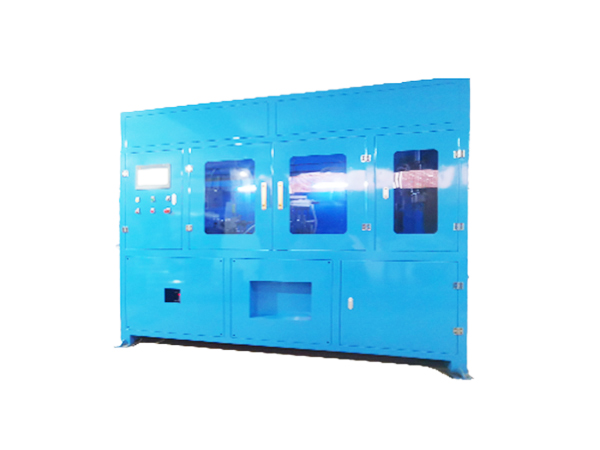

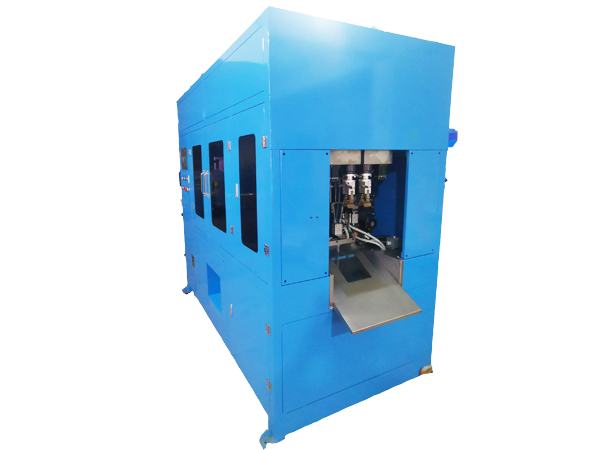

Integrated Wire Cutting, Coiling, End-Length Retention and Tying Machine

Model	80-160 Integrated Wire Cutting, Coiling, End-Length Retention and Tying Machine
Suitable materials	Versatile model for a variety of materials, including HDMI high-frequency data cables, AC cables, DC cables and tubing
Applicable wire diameter	1.5mm-20mm
Cutting length	3m-50m
Coil shape	Round coil with two ties
Cutting accuracy	±10mm
Coil core diameter	80mm-160mm
Leading-end length retained	≤450mm
Trailing-end length retained	≤450mm
Theoretical output	≤500PCS/H
Suitable ties	PVC ties with an iron core
Required air pressure	0.5-0.6Mpa
Total equipment power	12KW
Equipment dimensions	Approximately 3000mm L × 250mm W × 2400mm H
	ZH-80-160 Fully Automatic Integrated Wire Cutting, Winding, End-Length Retention and Tying Machine
	Highly versatile; suitable for wire, flexible hoses and rope
	Can be used independently or operated in coordination with wire extrusion equipment,
	Simple operation and convenient setup,
	Finished products are attractive and neatly arranged for convenient packaging
	Main component brands:
	Motor: servo motor + servo drive
	PLC: Siemens
	Touchscreen: Weilun
	Electrical components: Taiwan brands including Quanquan, Beiqi and Shilin
